Wednesday, October 23, 2013

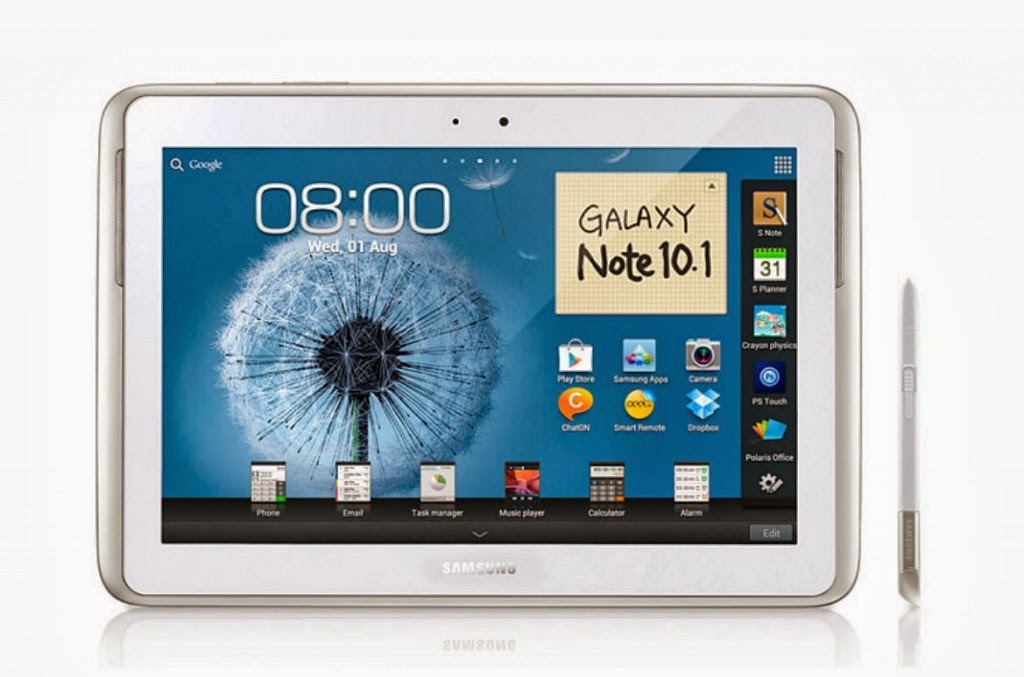

Recently , Samsung has released another official update with the version of the build as XXCMI2 for the Galaxy Note 10.1 international 3G + Wi-Fi version with the model number GT-N8000. The update is a Android 4.1.2 Jelly Bean based andavailable as an OTA update as of now and in Germany , through Samsung Kies for the Galaxy Note users



Installation steps for XXCMI2 Android 4.1.2 Jelly Bean on the Samsung Galaxy Note 10.1 N8000 :
Step-1: First of all, download the Android Jelly Bean XXCMI2
official update onto your computer from the following link (Download Now)
Step-2: Extract the downloaded firmware in order to get a file with .tar.md5 extension including some other files
Step-3: Download the Odin v3.07. Extract this and you will find the file with the name “Odin3 v3.07.exe” and few other files
Step-4: Turn off your device and wait for some time and let the device vibrate for the confirmation of complete power off
Step-5: Now, your device must be booted in the Download Mode by pressing and holding Volume Down and Power buttons together and wait for the construction Android robot to appear on the screen. To continue further in the download mode , press the Volume Up button .
Step-6: As administrator , run the Odin3 v3.07.exe on your computer
Step-7: Connect your tablet to your computer using a USB cable when it is in the Download Mode. Wait for Odin to detect the device. An Added message will appear under Odin message box after a successful connection. The ID: COM box in Odin turns blue with the COM port number indicating successful connection

Note: In case you don’t see any Added message , try the USB Port located at the back side of the computer.Re-install the USB driver if Odin still fails to recognise the device .
Step-8: Select the extracted files from N8000XXCMI2 folder to proceed with the installation on the tablet
a) Hit PDA button and choose the file which has a .tar.md5 extension
b) Hit Phone button and choose the file with the name MODEM
c) Hit CSC button and choose the file with the name CSC
d) Click PIT button and choose the .pit file
Note: If you don’t find any such files, ignore the last three steps b, c and d .
Step-9: Make sure for the Auto Reboot and F. Select the Reset Time checkboxes . Uncheck the Re-partition option and select only if a .pit file is in use.
Step-10: In the Odin , hit the Start button . The installation process starts and will take some time to finish.
Step-11: After a successful installation, the tablet reboots automatically. And then in the extreme left box at the very top of Odin , a PASS message with green background will appear. Disconnect your device from the computer by unplugging the USB .
XXCMI2 Android 4.1.2 Jelly Bean official firmware is now installed and running on the Galaxy Note 10.1. Navigate to Settings and then About tablet for the verification of the new software version of the device.
